RabbitMQ and the Producer-Consumer Model

In the previous articles, Kafka and the Producer-Consumer Model and The Design Philosophy of Kafka, we explored how Kafka — as a representative of the producer-consumer model in big data — supports high-throughput, real-time data streaming through its distributed architecture. However, due to its architectural complexity and heavyweight nature, Kafka may not be ideal for scenarios requiring lightweight deployment or flexible routing. That’s where RabbitMQ comes in — a message queue built on an entirely different design philosophy. Let’s dive in.

What Is RabbitMQ?

RabbitMQ is a message broker implemented in Erlang based on the AMQP (Advanced Message Queuing Protocol) specification. Originally developed by LShift for use in financial systems and now maintained by VMware, RabbitMQ emphasizes reliable message delivery, flexible routing, and rich consumer control, making it widely used in traditional applications and microservice architectures.

Key advantages of RabbitMQ include:

• Reliable Messaging
  Supports message persistence, acknowledgments, and transactions to ensure delivery reliability.
• Flexible Routing
  Powerful routing logic via the combination of Exchanges and Bindings.
• Strong Protocol Support
  While based on AMQP, RabbitMQ also supports MQTT, STOMP, HTTP, and other protocols.
• Plugin System
  A rich ecosystem of plugins to extend functionality, with support for custom plugins.
• Lightweight and Easy Deployment
  Can be quickly deployed even in resource-constrained environments.
• High Availability Clustering
  Supports distributed deployment with mirrored queues and quorum queues for fault tolerance.

Though RabbitMQ and Kafka both implement the producer-consumer model, their respective strengths lead to different architectural choices — RabbitMQ’s being significantly distinct from Kafka’s.

Core Architecture

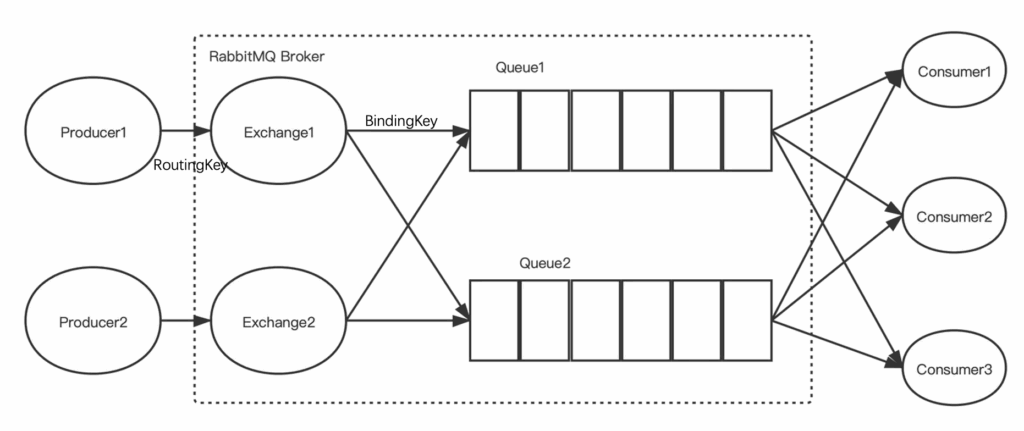

RabbitMQ has a more intricate core architecture than Kafka. The architecture is illustrated below:

Producer

A Producer is a message sender. After creating a message, it publishes it to a RabbitMQ Broker. A message generally consists of:

1. Body (Payload) – The business data.
2. Metadata – Including the exchange name and routing key, which RabbitMQ uses to route the message to the appropriate consumers.

RoutingKey

A RoutingKey is used to determine how the message should be routed through the exchange.

RabbitMQ Broker

The Broker is the RabbitMQ server instance responsible for receiving, routing, and storing messages.

Exchange

An Exchange receives messages from producers and routes them to one or more queues based on routing rules. If routing fails, the message may be returned to the producer or discarded.

RabbitMQ supports four types of exchanges:

• fanout
  Broadcasts all messages to every queue bound to it — similar to pub-sub.
• direct
  Routes messages to queues whose binding key exactly matches the routing key.
• topic
  Similar to direct, but uses wildcards in the routing key for flexible pattern matching.
• headers
  Does not rely on routing keys; routes messages based on matching message headers.

BindingKey

A BindingKey links a queue to an exchange. It defines how the broker should route messages from the exchange to the queue.

Queue

A Queue is an internal buffer in RabbitMQ that stores messages until they are consumed. Unlike Kafka, where each consumer gets its own copy of the data (depending on consumer group), RabbitMQ distributes messages across multiple consumers connected to the same queue, load-balancing the workload.

Consumer

A Consumer pulls messages from a queue and can acknowledge them to ensure reliable delivery.

Getting Started

Now that we’ve covered RabbitMQ’s goals, features, and architecture, let’s see it in action.

Producer Code (Java)

public class RabbitProducerDemo {
    private static final String EXCHANGE_NAME = "exchange_demo";
    private static final String ROUTING_KEY = "routingkey_demo";
    private static final String QUEUE_NAME = "queue_demo";
    private static final String IP_ADDRESS = "127.0.0.1";
    private static final int PORT = 5672;

    public static void main(String[] args) throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost(IP_ADDRESS);
        factory.setPort(PORT);
        factory.setUsername("admin");
        factory.setPassword("root");

        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        channel.exchangeDeclare(EXCHANGE_NAME, "direct", true, false, null);
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, ROUTING_KEY);

        String message = "Hello RabbitMQ!";
        channel.basicPublish(EXCHANGE_NAME, ROUTING_KEY,
                MessageProperties.PERSISTENT_TEXT_PLAIN, message.getBytes());

        channel.close();
        connection.close();
    }
}

Consumer Code (Java)

public class RabbitConsumerDemo {
    private static final String QUEUE_NAME = "queue_demo";
    private static final String IP_ADDRESS = "127.0.0.1";
    private static final int PORT = 5672;

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        Address[] addresses = { new Address(IP_ADDRESS, PORT) };
        ConnectionFactory factory = new ConnectionFactory();
        factory.setUsername("admin");
        factory.setPassword("root");

        Connection connection = factory.newConnection(addresses);
        Channel channel = connection.createChannel();
        channel.basicQos(64); // prefetch count

        channel.basicConsume(QUEUE_NAME, new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag,
                                       Envelope envelope,
                                       AMQP.BasicProperties properties,
                                       byte[] body) throws IOException {
                System.out.println("Received message: " + new String(body));
                try {
                    TimeUnit.SECONDS.sleep(1); // simulate processing
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                channel.basicAck(envelope.getDeliveryTag(), false); // manual ack
            }
        });

        TimeUnit.SECONDS.sleep(10); // keep app running
        channel.close();
        connection.close();
    }
}

Common Use Cases

RabbitMQ is commonly used in the following scenarios:

• Service Decoupling
  Enables asynchronous communication between microservices, reducing tight coupling.
• Delayed Tasks
  Useful in scenarios like order timeouts, scheduled notifications, etc., via TTL and dead-letter queues.
• Transactional Compensation
  Helps implement eventual consistency and distributed transactions alongside databases.
• Centralized Logging
  Collect logs from various services for aggregation, analysis, and visualization.

Conclusion

Unlike Kafka, which is designed for extreme throughput and large-scale distributed processing, RabbitMQ excels in lightweight, reliable, and flexible message delivery — especially in scenarios requiring routing logic, delayed tasks, or transactional reliability.

RabbitMQ represents an alternative design philosophy for implementing the producer-consumer model — one that prioritizes flexibility and reliability over raw throughput.
